Monitor Calibration for Accurate Prints, Part 1: What Photographers Get Wrong

By Art Suwansang, color management expert and Bay Photo ambassador.

The following article is an expert take on monitor calibration for advanced pros. If you're looking for a quickstart on the basics of color management, visit these articles in our Support Center.

You spend an hour dialing in an edit, the shadows show detail, the skin tones look natural, and you send the file to print feeling good about it. Then the print comes back darker and flatter than what you saw on screen. If this has happened to you, the problem is the disconnect between your monitor and the printer's output. Monitor calibration is the key to accurate prints, and it starts before you ever touch a calibration device.

Start With the Display

As photographers, we spend more hours editing images than we spend photographing them, which makes the final display part of the workflow rather than background equipment. Any monitor can be calibrated, but not every monitor can be calibrated well. A panel built for photography or creative work costs more than a standard consumer monitor because the panel underneath the price is stronger.

Laptop displays can be calibrated too, though they won't hold up next to a standalone desktop display, and gaming laptops in particular usually ship with a panel that wasn't built with photo editing in mind.

Surface coating changes what you see as well. Glossy screens (the kind found on most phones and tablets) are the most common option. Matte displays, made with a coating or an etching process (Apple calls its version nano-texture), tend to work better for photographers doing serious print work, because they read closer to how a printed image looks under light.

Color gamut is worth checking too. Most displays sold now cover Display P3 or DCI-P3 rather than sRGB or Adobe RGB, which has become something of a niche standard. If you shoot, edit, and export in sRGB, a display covering 90 percent or more of P3 will serve you fine. Prints on Fine Art paper can push past both sRGB and Adobe RGB, so a display covering 99 percent of Adobe RGB will show more of what that paper can hold. sRGB and Adobe RGB are both acceptable colorspaces for Bay Photo prints.

Brightness Is The Most Common Misconception

A creative or photography grade display typically ships three to ten times brighter than a printed image, depending on the model and backlight. Leave it at that setting and the photo on your screen will look good.

A monitor is a backlit medium, lit from behind the panel. A print works the opposite way: light bounces off its surface, and how it looks depends heavily on the room it's viewed in. Once you understand that difference, most of the screen-to-print puzzle falls into place.

Run a full calibration if you can. If not, you'll still need a calibration device to set brightness, measured in nits or candelas. For a display meant to approximate a print, aim for 80 to 120 nits, adjusted in increments of 10 depending on how bright your room is. A slightly brighter room calls for the higher end of that range.

This has nothing to do with the brightness slider built into your monitor's menu. That scale runs from 0 to 100 with no fixed luminance value behind it, and it behaves closer to logarithmic than linear, with less change in the shadows than in the highlights. That's why a calibration device (not your eyes and not that slider) is the only reliable way to hit a target.

What Monitor Calibration Gets Wrong Most Often With Print

Here is the mistake I see most often. A photographer sets a calibration device on the display, runs an automatic profile, and expects accurate color to follow. Brightness gets left out of that process more often than not, and it's the single most important variable in the whole exercise. The right display and the right instrument still won't save a print if brightness was never addressed. The fix is straightforward: set the correct nit target for your room and recalibrate.

Your Editing Room Affects the Print

You don't need a blacked-out room, just one where you control the light. Light-blocking curtains help if a window lets in strong daylight, and a shading hood on your monitor is another option. Controlling the light in the room you edit in is the single most useful change you can make.

Once brightness is under control, color accuracy is the next thing to fix, and a hardware instrument is the most reliable way to do it. A professional-level device will outperform an entry-level one, since the cheaper tools don't give you enough control for this kind of work. Calibrite's Display Pro HL and Display Plus HL are two models worth looking at.

The Light You Use to Judge a Print

⁠Once your display is calibrated, one variable is still unaccounted for: the light you use to look at the actual print. Holding a print up to a window won't give you a consistent read, since daylight shifts throughout the day. Use a lamp, LED or otherwise, with a Color Rendering Index (a measure of how accurately a light source renders color compared to natural daylight) of 95 or higher, and set its color temperature to match your display's calibration target. The light will likely look bluer than what you're used to in a living room or office. That's expected.

For more details on the importance of good lighting when previewing test prints, visit this article.

D50 or D65: Match the Light to the Calibration

A common point of confusion is D50, or 5000K, a temperature frequently used in printing. Calibrating to D50 is fine. What matters more is that the color temperature of your viewing light matches whatever temperature you calibrated your display to.

After years of doing this, I generally recommend D65, or 6500K, over D50, since the eye reads a wider range of the color spectrum at that temperature. Neither is wrong. It comes down to preference, and there's no fixed rule for how bright your viewing light needs to be, only that it can sit next to your display for a fair comparison.

A Note for Apple Pro Display Owners

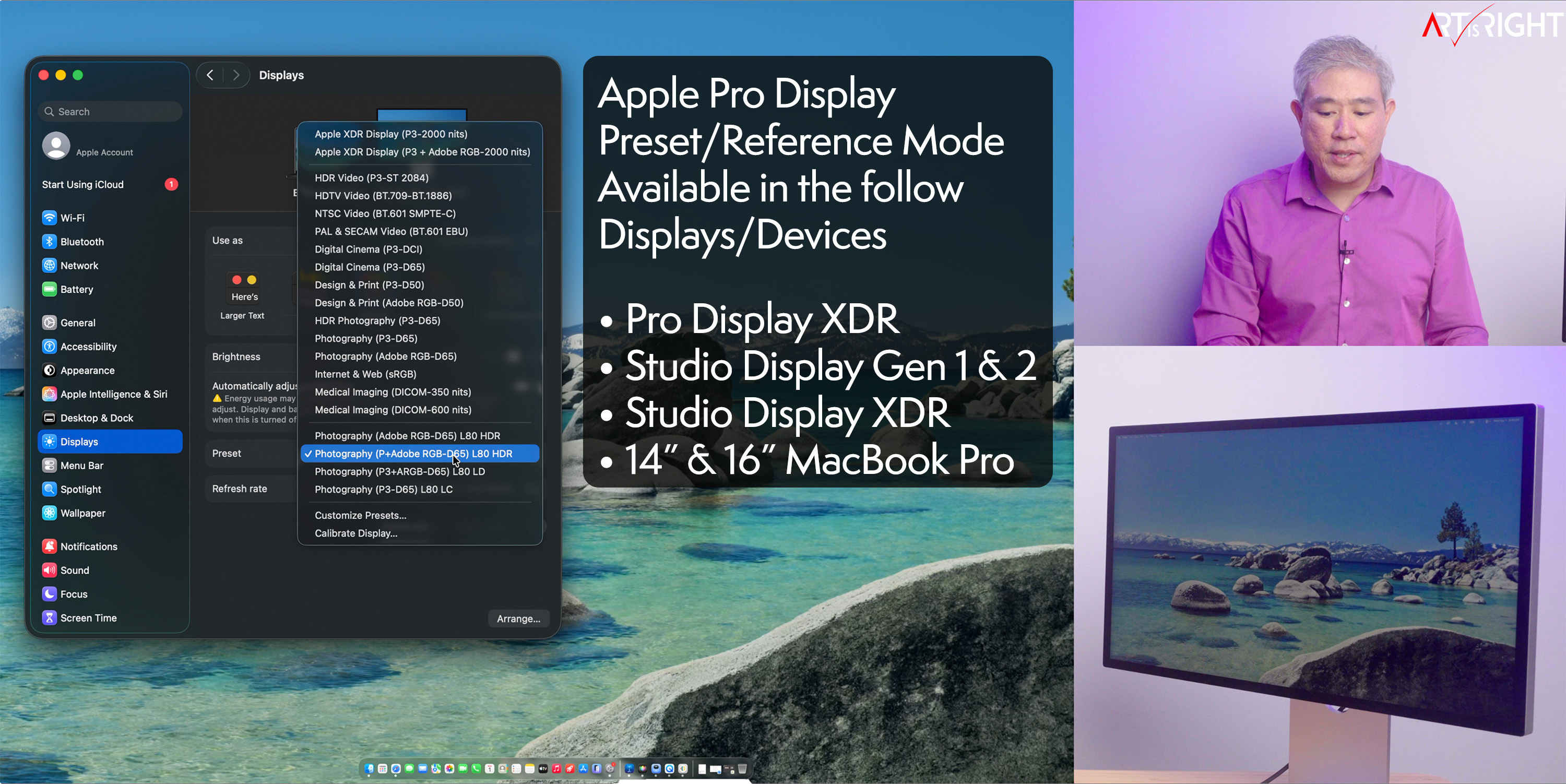

⁠If you're working on a Studio Display, Studio Display XDR, Pro Display XDR, or a Liquid Retina XDR panel in a 14 or 16 inch MacBook Pro on Apple Silicon, these displays ship with built-in reference modes for luminance and color gamut instead of relying on a standard profile, which changes what calibration should look like for you.

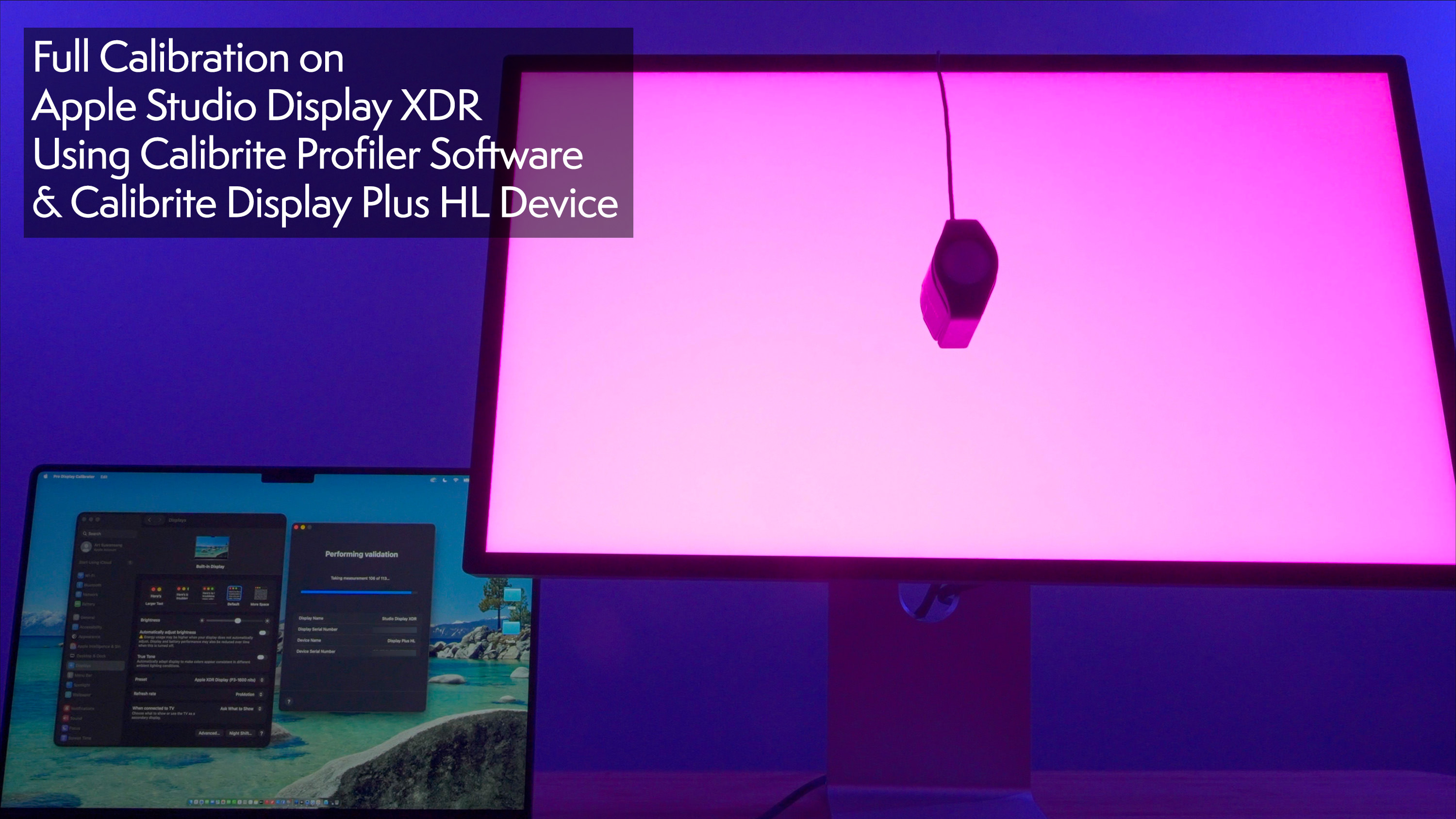

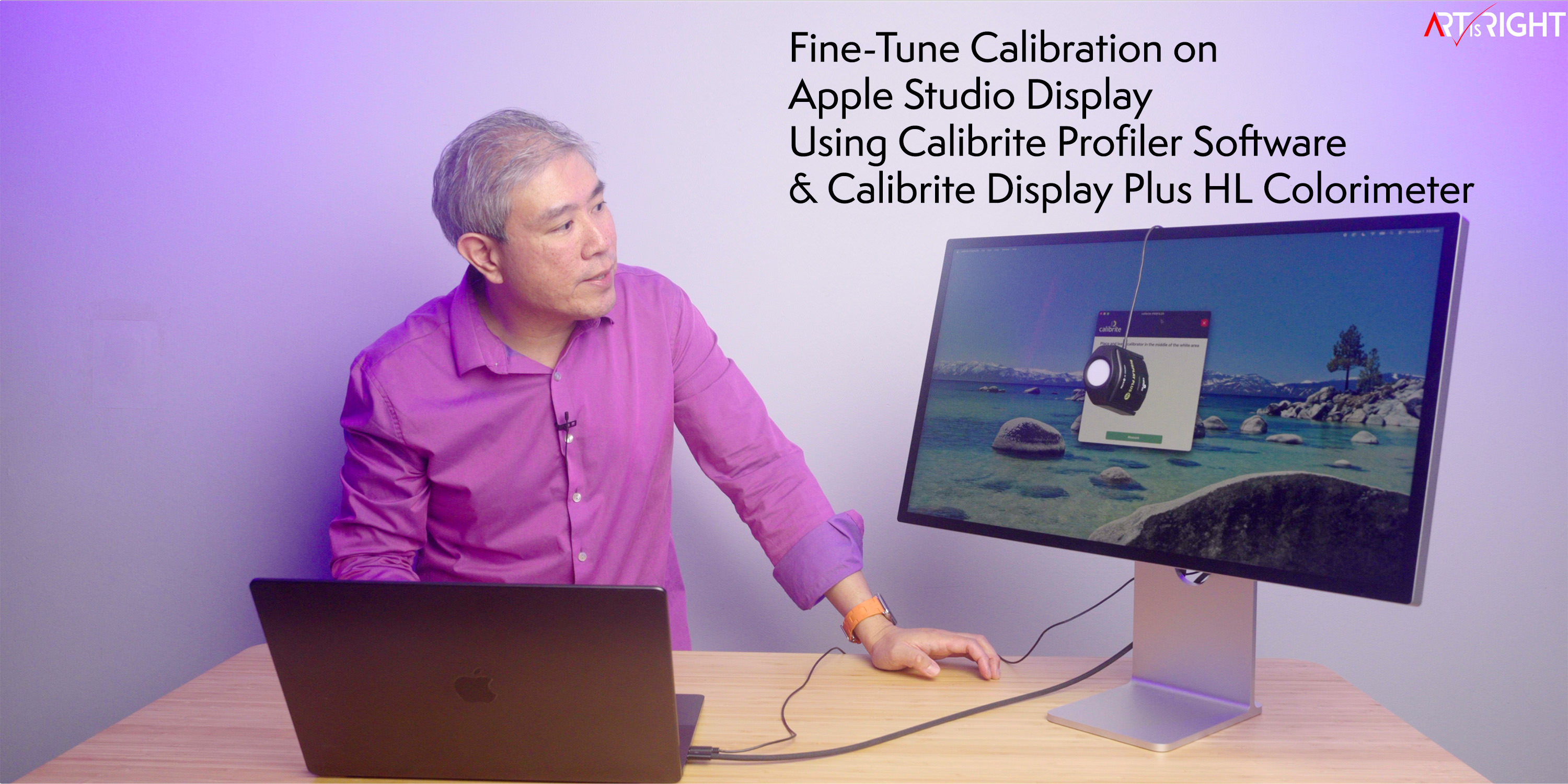

Two terms get used loosely, so here's the distinction. A full calibration builds a custom ICC profile from scratch, the way you would on a third-party monitor. A fine-tune calibration measures the display and adjusts an existing built-in reference mode rather than building a new profile from nothing. Most Apple Pro Displays don't need a full calibration. A fine-tune from a professional calibrator gets you further, since it verifies and corrects a factory mode that's already close rather than starting over.

A full calibration becomes worth running once a panel has aged enough that a fine-tune can't pull it back, for example a preset targeting 80 nits that measures 65 during a fine-tune pass. That drop points to normal panel aging, and a full calibration will get the display closer to its factory targets, though it works by writing a correction profile that tells the display controller what adjustments to apply rather than physically recalibrating the panel itself.

Getting the File Ready to Print

Calibration gets your monitor telling the truth. What you do with the edit still matters as much. Getting an image to 70 or 80 percent finished takes very little time. Getting it the rest of the way takes as much effort again, the way a phone battery charges quickly to 80 percent and slows down after that.

Start with contrast, and add an S-curve if the image needs it. Then look at your histogram, particularly the highlight side. A gap at the far right usually means there's no image data there. Bring the clipping point in from the right edge until you start to see color clip, then back it off slightly. That one adjustment alone tends to produce a noticeably better print. Images built for a softer, lower-contrast look are the exception, but this approach is a solid starting point for anyone still working this out.

A calibrated display, a controlled room, correct viewing light, and a refined edit put you in control of a file before it ever leaves your computer. What happens next is printing, where all of that work either holds up or falls apart.

That's the theory. Knowing your monitor needs to sit at 80 to 120 nits doesn't tell you how to set a calibration device up in your own room and get there.

Part 2 of this series walks through that process step by step, using a Bay Photo Evaluation Print to check the result against something physical.

For professional photographers, film photographers working from scans or hybrid files, and fine artists preparing work for sale or exhibition, that's the piece worth reading next.

FAQ

Why does my print look darker than what I see on my screen? Most likely your monitor is brighter than the 80 to 120 nit range that approximates print output. Check your calibration device's luminance reading before assuming the lab did something wrong.

What calibration hardware do I actually need? A hardware colorimeter or spectrophotometer, not just eyeballing sliders. Calibrite's Display Pro HL and Display Plus HL are two professional-level options.

Should I calibrate to D50 or D65? Either works, as long as your print viewing light matches the same color temperature as your calibration target. D65 (6500K) reads better for most photographers.

Can I calibrate a laptop display for print work? Yes, though a laptop panel won't perform as well as a standalone desktop display, and a laptop that changes environments regularly will drift out of sync with its calibration faster.

What's the difference between a full calibration and a fine-tune calibration? A full calibration builds a new ICC profile from scratch. A fine-tune calibration measures and adjusts an existing built-in reference mode, which is what most Apple Pro Displays need instead of a full calibration.

How often should I recalibrate my monitor? Displays drift over time, so revisit your calibration every couple of months, sooner if prints start looking off again.

Does monitor calibration for accurate prints guarantee a screen and print will match exactly? No single step guarantees an exact match, since prints are reflective and monitors are backlit. Calibration gets you a monitor you can trust as a reference, which is the most control you have before a file goes to print.

⁠Meet Art Suwansang

Art Suwansang is a Southern California-based photographer, color management expert, and technology consultant behind the YouTube channel ArtIsRight (Instagram: @artisright). His photography covers weddings, events, and architecture, and his consulting work covers workflow for creatives, from computer setup and data management to color-accurate display calibration. He has taught digital photography curriculum for colleges and universities in the U.S. and abroad and has worked as a photographer for the U.S. federal court system.

Art is a Calibrite ambassador and color expert, an Adobe partner and influencer, and a former X-Rite Coloratti member.

⁠Learn more about his work at artisright.com.
